Mesh → View window

Purpose · Steps · Inputs and units · Limitations · Related topics

Purpose

Inspect the generated mesh, including refinement and interior cells.

Steps

  1. Generate the mesh so it is available in the view.

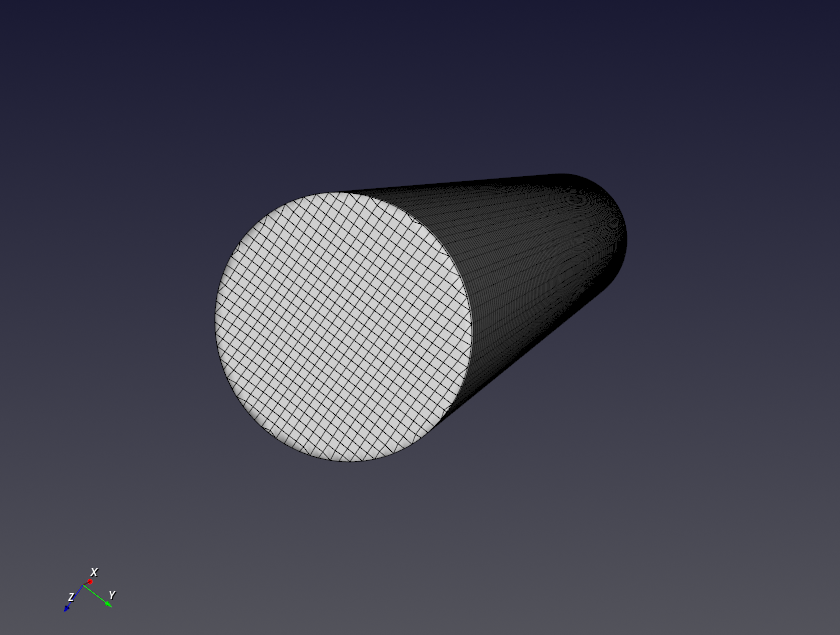

    View window controls

  2. Rotate with the middle mouse button and pan with the right mouse button.
  3. Use Fit all, Wireframe, or the cutting controls to inspect local features.

Inputs and units

Input or valueMeaningUnits
View controlsCamera or display settings only; no geometry dimensions are entered.No physical units

Limitations

  • Cutting large meshes may respond slowly and can show display artifacts. Use the quality graphs as well as visual inspection.
