Geometry → Combine bodies

Purpose · Steps · Inputs and units · Limitations · Related topics

Purpose

Merge touching or overlapping solid bodies with a Boolean union.

Steps

  1. Select the Combine tool.

    Combine bodies controls

  2. Click the first body, then the second body with the left mouse button.

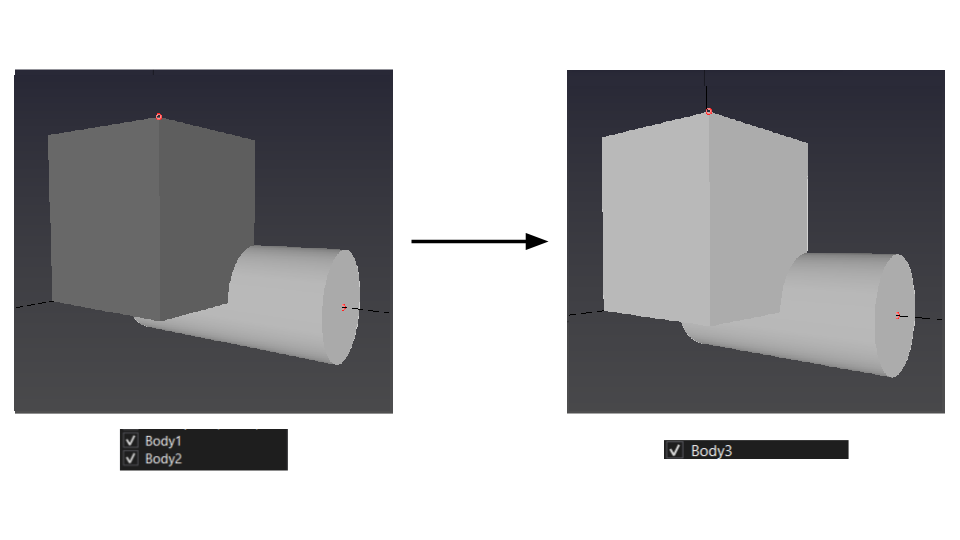

    Two overlapping bodies before and after combining them into one body.

Inputs and units

Input or valueMeaningUnits
BodiesTwo solids to merge.No numeric input

Limitations

  • The bodies need a suitable touching or overlapping region to form a connected volume. Check the resulting geometry before meshing.
