Geometry → Create arc
Purpose · Steps · Inputs and units · Limitations · Related topics
Purpose

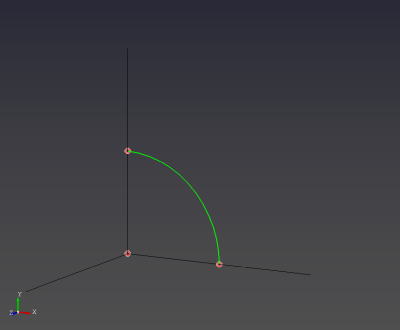

Create a circular arc from a center and two radius points.
Steps
- Select the Arc tool.
- Click the center, then the start radius point, then the end radius point.
Inputs and units
| Input or value | Meaning | Units |
|---|---|---|
| Points | Center → start → end; both radius points must be equally distant from the center. | Point coordinates use Geometry length units |
Limitations
- The three points must not be collinear. This tool does not create a full 360° circle; use Circle for that.
